Collisions Between Pedestrians and Reversing Vehicles in Public Settings in France

1. INTRODUCTION

This paper deals with accidents between reversing vehicles and pedestrians occurring on public roads and other places open to the public, such as car parks. This problem has received little attention in France, in contrast to other countries such as Australia, Canada or the USA, for example [1-3]. In the French national file of traffic injury accidents, the manoeuvre carried out by the driver at the time of the accident was coded as “reversing manoeuvre” in 6.5% of the traffic injury accidents involving pedestrians (which will be referred to as “pedestrian accidents” throughout this article) reported in France over the 2008-2015 period. This proportion showed no significant change over the period. This category does not, however, reliably identify all reversing manoeuvres. Indeed, an unknown proportion of the accidents for which the manoeuvre carried out at the time of the accident was coded as a “parking manoeuvre” (1.5% of the pedestrian accidents reported over the 2008-2015 period) may also involve a reversing manoeuvre.

This work aims to provide a brief assessment of this problem in France, in quantitative terms (to corroborate the proportion of reversing accidents estimated from the national file), but also in qualitative terms, through the detailed analysis of accident cases, in order to contribute to reflections on possible preventive measures, notably in the field of urban planning and design. Indeed, although vehicle technology and equipment, such as reversing cameras, have the potential to reduce the number of these accidents, they cannot eliminate them, as suggested by recent research [4-6].

In this work, we do not deal with non-traffic accidents between pedestrians and reversing vehicles occurring in workplace locations [7-9] and on other private properties, such as residential driveways where young pedestrians are frequently reversed over (see inter alia [10-18]:). As a whole, however, this research on non-traffic accidents led to identifying some common factors involved in reversing collisions with pedestrians. Limited rear visibility often plays a role in these accidents [8, 9, 17]. Light trucks and vans are over-represented in driveway-related reversing accidents [12, 15-17], due to the large blind zones behind these vehicles. The absence of immediate child supervision in the vicinity of the driveway is also mentioned [15, 17]. Another common risk factor is the absence of physical separation of the driveway from children’s play areas [11, 15].

Less attention has been paid to pedestrian injuries due to vehicles reversing on public roads or other places open to the public. Older pedestrians appear to be over-involved in these injury accidents [1, 19-21]. Functional decline due to the ageing process may play a role: older pedestrians tend to have visual and hearing problems and are less able to detect moving objects [21]. The cognitive decline associated with dementia-related neuropathology is also associated with a higher risk of being hit by a reversing vehicle [22]. Older pedestrians may also have difficulties in anticipating unexpected vehicle movements, such as the reversing manoeuvre of a parked car [19]. Lastly, they may be limited in their capability to quickly get out of the path of a reversing vehicle as it approaches [20, 21, 23]. Preventive measures have been proposed in terms of vehicle technology (reversing aids) and safety information for pedestrians and drivers (see for example [19, 21]). Little is known, however, on the way the planning and design of roads and public spaces might contribute to preventing these reversing accidents.

The work reported here focuses on injury accidents between pedestrians and reversing vehicles in public settings (roads and other places open to the public) in France. First, a rapid examination of a random sample of police reports on pedestrian accidents occurring in public settings in France is carried out to corroborate the proportion of reversing collisions estimated from the national statistics. Secondly, the reversing accidents found are thoroughly analysed with the aim to identify the processes and mechanisms involved in their occurrence.

2. DATA AND METHOD

In France, traffic injury accidents are accidents occurring in public settings, involving at least one vehicle, and resulting in at least one injury needing medical care. For each accident, insofar as injuries are found, the police must draw up a report for the public prosecutor (procureur de la République). These accidents are then recorded in the French national file of traffic injury accidents. As mentioned in the introduction, however, the variables available in this file do not make it possible to identify the reversing manoeuvres clearly and without ambiguity. We, therefore, used police reports, which are more detailed and explicit. They include statements made by the persons involved and witnesses, and a map of the accident with information on the final positions of the vehicles involved and on material clues such as skid marks, debris, etc. These confidential documents can be accessed for research purposes with appropriate permission. Thus, we have had access to a random selection of 882 police reports on road traffic injury accidents involving pedestrians occurring in France from 2008 to 2011. In France, a copy of each police report is sent to the TRANSPV organisation, which is affiliated to the French Federation of Insurance. TRANSPV randomly selected a sample of 5000 police reports on traffic injury accidents for the 2008-2011 period and sent them to IFSTTAR for research purposes. This sample represents about 1.8% of the 279,100 traffic injury accidents reported in France during this period. Among these 5000 accidents, 882 were pedestrian accidents, representing 1.8% of the 49,300 pedestrian accidents reported in France during the period from 2008 to 2011. Our study sample consists of these 882 pedestrian accidents.

Firstly, a rapid examination of the 882 police reports was carried out to identify the cases where pedestrians were hit by reversing vehicles, and to estimate the proportion of these reversing collisions. Secondly, each of the reversing collisions found (61 cases) was analysed in detail, using a sequential accident model as described by Fleury [24] (see also [25]). For each road user involved, the socio-demographic characteristics of the person, conditions of her/his travel (trip purpose, vehicle used, external conditions), driving/walking activity just before the accident, manoeuvres made and perceptions of the situation when the pedestrian and vehicle interact, and the conditions of the collision, were successively analysed. These analyses were based on the police report and other data on the accident site and surrounding road network (photographs, maps). This method made it possible to identify some common accident mechanisms.

3. RESULTS

3.3. Most Common Reasons for the Reversing Manoeuvres

Identifying the reason why the driver carried out the reversing manoeuvre leading to the collision is important, since limiting the need for reversing manoeuvres and reducing their number may contribute to the prevention of these collisions. The reasons and circumstances of the reversing manoeuvres, as far as they can be inferred from the police reports, appear in Table 1.

Table 1.

Reasons and Circumstances of the Reversing Manoeuvre	Number of Cases (and Percentage)		Details
a) Vehicle reversing to leave/enter a parking space	24	(39%)	(in streets: 16 cases; in car parks: 8 cases) (to leave/enter a space: 18 cases/6 cases)
b) Vehicle reversing into a perpendicular street to reach a parking space or to deliver goods	9	(15%)	(to reach a parking space: 6 cases; to deliver goods: 3 cases)
c) Vehicle reversing down a narrow street or cul-de-sac to reach the main street	7	(11%)	(after delivering goods: 5 cases)
d) Vehicle reversing down a street to reach a given point (shop, place of residence, parking space)	4	(7%)	–
e) Vehicle reversing to leave a car park or a driveway	3	(5%)
f) Vehicle reversing to make a U-turn	3	(5%)	(in streets: 2 cases; in car parks: 1 case)
g) Vehicle reversing for a road-related work activity	3	(5%)	(street cleaning: 1 case; breakdown truck approaching to load a car: 2 cases)
h) Miscellaneous	6	(10%)	(in streets: 3 cases; in car parks: 3 cases)
i) Vehicle reversing for an unknown reason	2	(3%)	(in streets)
Total	61	(100%)

A large proportion of reversing manoeuvres (39%, CI: 28%-52%) were made for entering or leaving a parking space. Another common situation (15% of the reversing manoeuvres, CI: 8%-26%), corresponds to vehicles reversing into a perpendicular street to approach and reach a parking space as shown in Fig. (1) or to deliver goods in this street. In most of these cases, the destination of the vehicle could have been reached by other routes, thus avoiding reversing into the perpendicular street, but this would have involved a detour and a delay.

Vehicles reversing down a narrow street or cul-de-sac in order to reach the main street, mostly after the driver had delivered goods, also account for a non-negligible proportion of cases (11%, CI: 6%-22%). Except in one case, these accidents involved light commercial vehicles or heavy goods vehicles. In all cases, making a U-turn would have been impossible or difficult, and there was no other possibility than reversing down the street, because of the cul-de-sac layout or the narrowness of the downstream part of the street.

4. DISCUSSION

The proportion of reversing accidents among police-reported pedestrian accidents occurring in public settings in France is estimated to be about 7%, which is in agreement with results found in other countries (see for example [1, p. 21] and [2]). Thus, among the 11,700 pedestrian accidents reported each year in France (over the 2008-2015 period), about 800 involve reversing vehicles.

Older pedestrians appear to be over-involved in these accidents, which is consistent with the findings of previous literature [1, 19-23]. According to these publications, this result can be partly explained by various aspects of their functional decline due to the ageing process. These publications suggest possible measures of safety information on the danger of reversing manoeuvres for pedestrians, oriented towards older pedestrians or towards drivers.

The over-involvement of commercial and goods vehicles can be compared to the over-involvement of light trucks and vans found in previous studies for reversing accidents occurring in residential driveways (see for example [16]). This over-involvement could be explained by the poorer visibility to the rear of these vehicles, as compared to cars. In addition, in some circumstances, the large dimensions of some of these vehicles may oblige their drivers to make reversing manoeuvres, such as reversing down a narrow street or cul-de-sac. A significantly higher risk of fatal outcome is found when heavy goods vehicles are involved, although this result is based on a small number of fatal cases. This could be related to specific crash mechanisms, such as pedestrians being run over by the wheels of these heavy vehicles.

In a substantial proportion of reversing accidents, the pedestrian failed to see the reversing vehicle before the collision (result based on a subsample of 25 cases for which the police report contained information on this point). This may suggest the need to expand the use of reversing alarms, but the effectiveness of this device, commonly used in industrial contexts and work areas, appears to be moderate [26, 27].

The high proportion of accidents where the driver failed to see the pedestrian (result based on a subsample of 30 cases for which the police report contained information on this point) confirms the interest of reversing aids. According to the National Highway Traffic Safety Administration, reversing cameras may reduce the number of reversing accidents by 28% to 33%, whereas “the other systems afford little or no measureable safety benefit” [28]. A number of factors, however, contribute to moderating the use and performance of reversing cameras [5, 29]. Automatic reverse braking systems could also be considered. According to Kochhar et al. [30], these devices could be effective provided they are associated with reversing cameras. Indeed, without a reversing camera, drivers tend to continue the reversing manoeuvre after the system has stopped their vehicle.

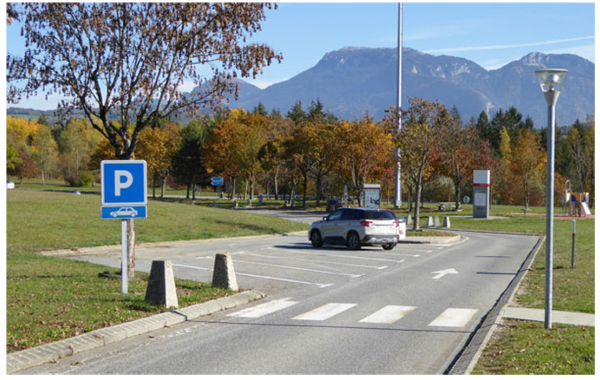

Reversing collisions related to parking manoeuvres appear to be frequent. There is no clear way of improving the visibility conditions of reversing manoeuvres through the design of roads and car parks, but some designs could probably reduce the need for reversing manoeuvres, as illustrated in Fig. (2) (although this layout seems to be space-consuming).

The cases of vehicles reversing into perpendicular streets in order to reach a parking space or to deliver goods also raise issues in terms of the design and management of urban road networks. The rarity of the parking supply may encourage drivers to make such manoeuvres in order to avoid a detour and the risk that, after making the detour, the desired parking space may be occupied by another vehicle. Reversing manoeuvres into perpendicular streets are also encouraged by certain network organisations that involve long detours through their systems of one-way streets. The results presented also show that some reversing accidents are related to cul-de-sac layouts and the narrowness of certain minor streets that force some vehicles to reverse down these streets. This suggests that, at least for new urban developments, attention should be paid to the compatibility of the design of minor streets with the occasional passage of large vehicles, and to the provision of appropriate U-turn facilities at the end of cul-de-sacs.

The study reported here suffers from some limitations, however. Firstly, police-based data on accidents are affected by the under-reporting of the least severe injuries (as regards pedestrians, see [31]). Thus, the sample studied here is probably biased towards more serious injuries. Secondly, the analysis of police reports involves a degree of interpretation, since this analysis is mainly based on the collation and combination of statements made by the persons involved and other clues available. Moreover, information may be lacking for some points, depending on the degree of thoroughness of the police report. For example, regarding certain results (pedestrian detection, perception of the vehicle), sufficient information was only available in about one half of the police reports studied (30 and 25 cases, respectively). More generally, due to the limited size of the sample (61 cases), the results remain to be confirmed by further investigations on larger samples of reversing accidents. Lastly, we had access to detailed accident data for the 2008-2011 period, whereas reversing cameras have become more frequently available in cars produced in the recent years. It is therefore possible that the results presented are slightly different from what would have been obtained for more recent years.

Moreover, some of the findings may not apply to other countries. The role of road layouts, for example, may be specific to European countries where road networks have been partly inherited from past centuries and where narrow streets are common.

CONCLUSION

In France, as in other countries, traffic accidents between pedestrians and reversing vehicles represent a non-negligible proportion of pedestrian accidents. The investigation reported here made it possible to estimate this proportion and to identify some circumstances and mechanisms commonly involved in the occurrence of these accidents. Some lessons in terms of prevention could be drawn from these findings, although they remain to be consolidated by larger-scale studies. Firstly, as already found in previous studies, older pedestrians appear to be the most affected by these accidents, which suggests that this age group could be particularly targeted by prevention measures. Secondly, the problems related to drivers’ limited rearward visibility suggest that the efforts made to equip vehicles with reversing aids should be continued. Thirdly, the over-involvement of commercial and goods vehicles could be taken into consideration in public policies on goods transport and delivery in urban areas (adaptation of road networks; regulation of goods transport and delivery). Lastly, the analysis of the reasons for the manoeuvres leading to these accidents shows that some road designs may encourage or force drivers to make reversing manoeuvres (at least for large vehicles). This finding notably suggests the need for studying potential solutions in the field of planning and design of roads and public spaces, mainly aimed at reducing the need for reversing manoeuvres.
